ADVANCED MATERIALS

From alumina to zirconia: Discover high-performance ceramics tailored to your most demanding industrial challenges.

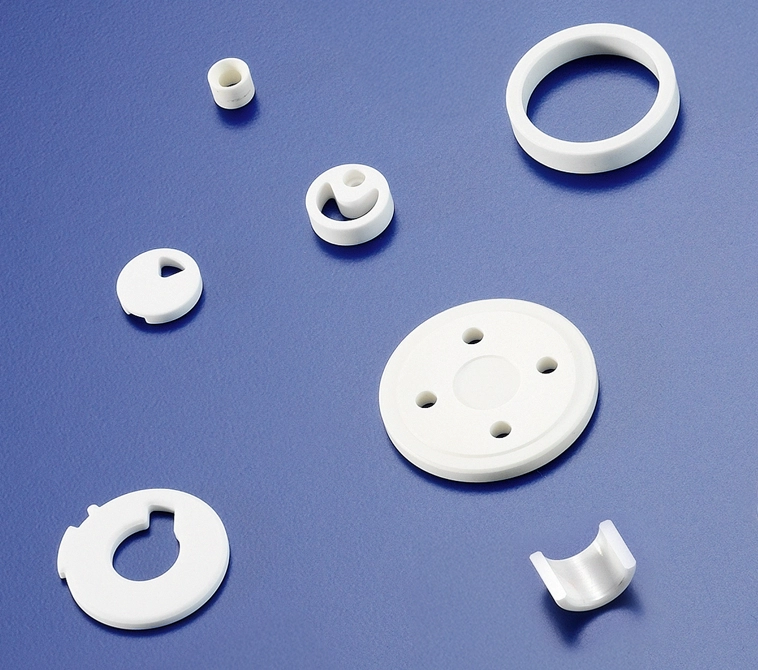

Materials – Aluminum Oxide C795 / C799

Aluminum Oxide Al2O3 is the most significant technical oxide ceramic material with the widest range of applications. Densely sintered alumina is characterized by very high strength and hardness, high temperature stability, excellent electrical insulation, and high resistance to both wear and corrosion, even at elevated temperatures.

Outstanding performance values for flexural strength, wear resistance, and high-temperature stability make it the preferred choice for many mechanically highly stressed applications. We process C795 (96% purity) and C799 (99.7% purity), both offering high chemical resistance and superior surface quality. As a specialty material, we can also provide 99.99% purity.

Application Example: Seal Discs, Pumps, and Valves

Applications in Detail

  • Sanitary Industry: Used as sealing elements

  • High-Performance Electrical Engineering: As insulating components or heat sinks

  • Electronics: As substrates

  • Mechanical and Plant Engineering: For wear protection

  • Pumps and Valves: As seal discs and bearing bushings

  • Chemical Industry: For corrosion protection (highly resistant to vapors, melts, slags, alkalis, and acids even at high temperatures) and as filters

  • Measurement Technology: As protection tubes for thermocouples in high-temperature measurements

  • Human Medicine: As implants

  • High-Temperature Applications: As burner nozzles or support tubes for heating elements

  • Sensor Technology and Wear-Resistant Nozzles

Advantages of Alumium Oxide

  1. Seal Discs, Pumps, and Valves
  2. High electrical insulation
  3. Very high thermal conductivity
  4. Excellent temperature stability
  5. High wear resistance
  6. Superior corrosion resistance
